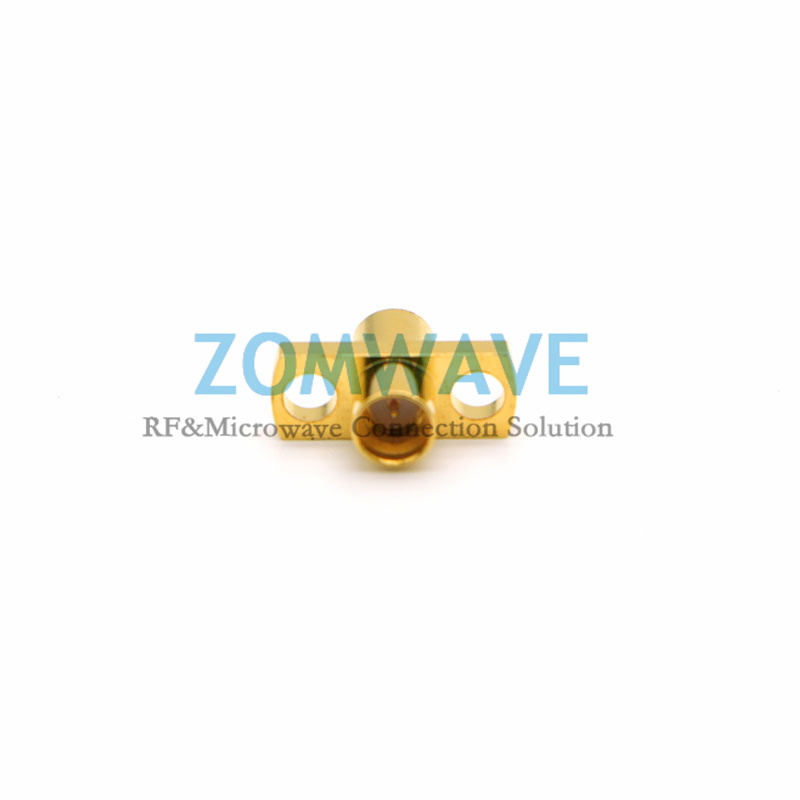

SMP Full Detent to Limited Detent Adapter,2 Hole Flange, 18GHZ

SMP Full Detent to Limited Detent Adapter,2 Hole Flange, 18GHZ

This SMP plug to SMP plug adapter features full detent and limited detent interfaces, 50Ω impedance and DC~18GHz bandwidth with VSWR below 1.30. It adopts gold-plated beryllium copper contacts, brass housing and PTFE insulator, supporting over 500 mating cycles, operating from -55℃ to +125℃. RoHS-compliant with 500V dielectric strength, it fits compact microwave modules, RF testing equipment, mini communication devices and aerospace radar systems.

12in

P/N: MPP-MPP-SFL-01 Quantity Unit Price 05~09 US$24.24 10~49 US$23.27 50~99 US$22.30 100~199 US$20.85 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

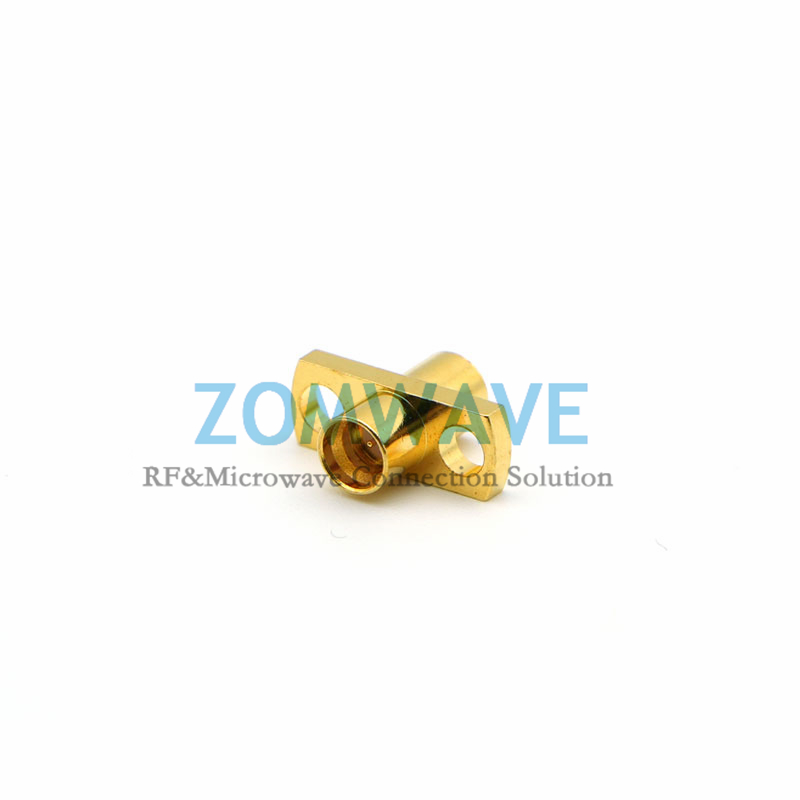

smp male to smp male adapter

smp male to smp male adapter, rf adapter

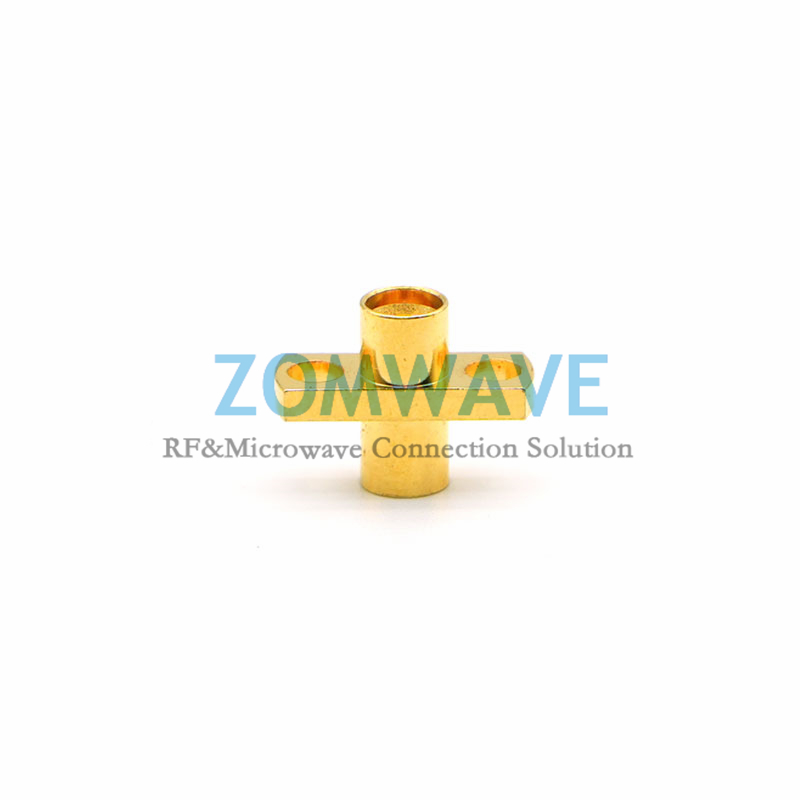

smp male to smp male adapter, rf adapter, coaxial rf

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

Configuration
Adapter Series 1	SMP(GPO)
Adapter Gender 1	Male
Adapter Angle 1	Straight
Adapter Mount Method1	2 Hole Flange
Body Materials and Plating 1	Brass Gold Plated
Adapter Series 2	SMP(GPO)
Adapter Gender 2	Male
Adapter Angle 2	Straight
Adapter Mount Method 2	2 Hole Flange
Body Materials and Plating 2	Brass Gold Plated
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	18GHz
VSWR	≤1.3:1 (DC 0~18GHz)
Insertion Loss	≤0.05xSqt(f_GHz)
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-55°C ~ +125°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
