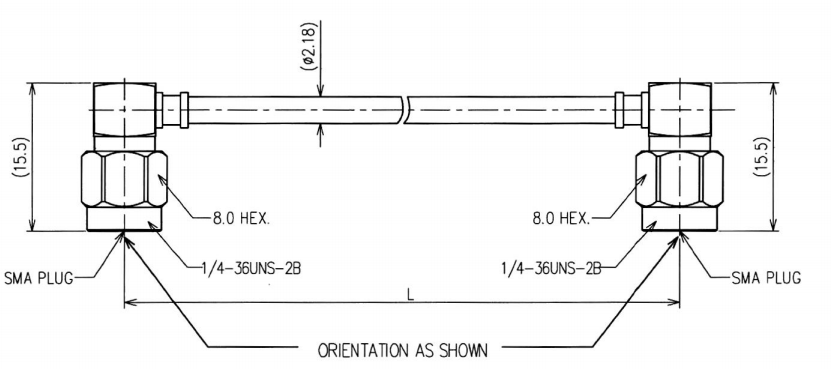

SMA Male R/A to SMA Male R/A, Semi-Rigid RG405 Cable Assembly, 6GHZ

SMA Male R/A to SMA Male R/A, Semi-Rigid RG405 Cable Assembly, 6GHZ

Zomwave Semi-Rigid Cable Assembly delivers unrivaled signal integrity across an ultra-broad frequency range from DC up to 110 GHz, engineered for critical RF, microwave, and millimeter-wave applications. Built with a solid copper outer conductor and low-loss PTFE dielectric, it minimizes insertion loss and ensures stable phase performance. Ideal for aerospace & defense radar systems, 5G/6G telecom base stations, test & measurement instruments, medical diagnostic equipment, and automotive radar, our customizable assemblies support SMA, N-type, TNC, 2.92mm, 1.85mm connectors and comply with MIL-STD and RoHS standards, meeting your precise project requirements with trusted durability.

Standard Lengths :

12in 24in 36in 48in

P/N:MAPRMAPR-R086A-12IN-01

P/N:MAPRMAPR-R086A-24IN-01

P/N:MAPRMAPR-R086A-36IN-01

P/N:MAPRMAPR-R086A-48IN-01

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

semi-rigid rg405 cable,sma cable

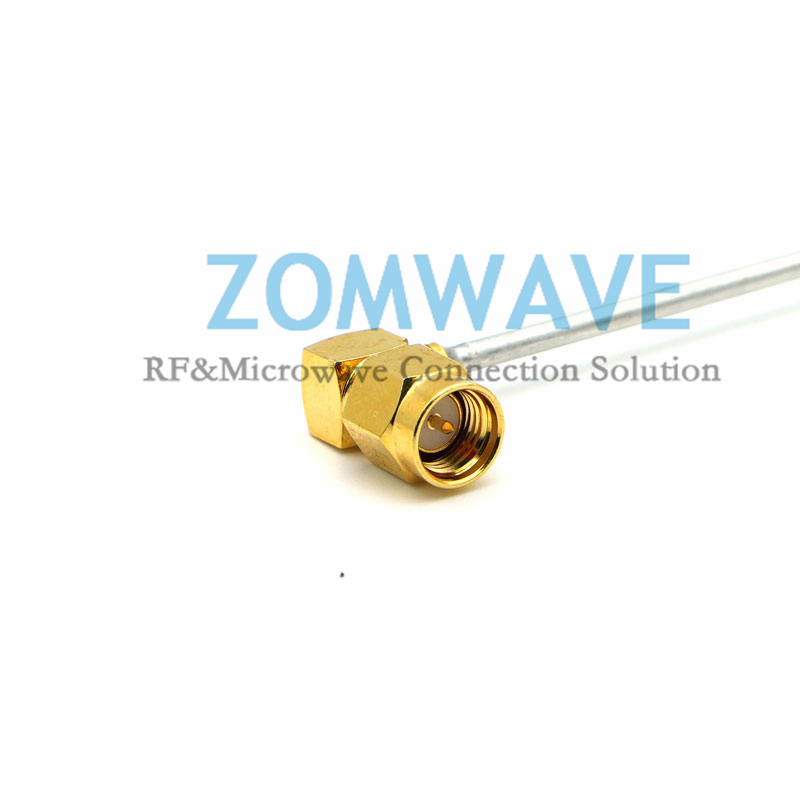

semi-rigid rg405 cable,sma cable, sma male

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

Configuration
Connector Series 1	SMA
Connector Gender 1	Male
Connector Angle 1	Right Angle
Connector Mount Method1	None
Body Materials and Plating 1	Brass Gold Plated
Connector Series 2	SMA
Connector Gender 2	Male
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Body Materials and Plating 2	Brass Gold Plated
Cable Type	Semi-Rigid RG405
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	6GHz
VSWR	≤1.25:1 (DC 0~6GHz)
Insertion Loss	Depends on cable length
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	8 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +85°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Inner Conductor	Silver plated copper
Dielectric	PTFE
Outer Conductor	Tin-Plated Copper Tube
Jacket Diameter(mm)	2.18±0.05
Shielding Effect(dB)	>110 (0~1G)
Weight(kg/km)	/
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)	Attenuation(dB/m)
0.5	0.44
1	0.66
2	0.97
3	1.23
5	1.54
6	1.72
8	2.00
10	2.23
18	3.09
20	3.29
