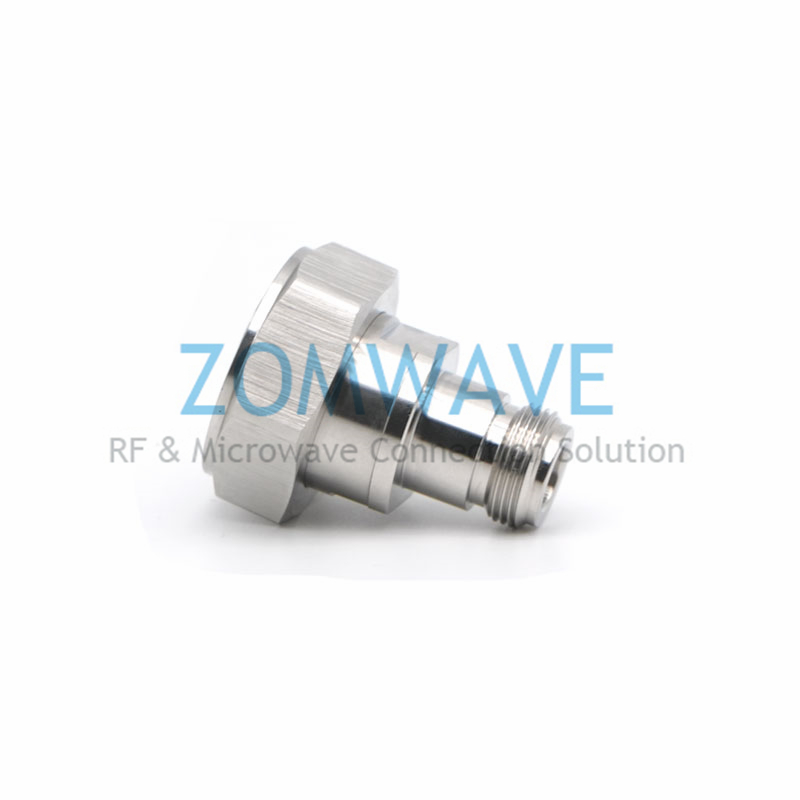

7/16 Plug to N Type Jack Adapter, 7.5GHz

7/16 Plug to N Type Jack Adapter, 7.5GHz

This 7/16 plug to N jack RF adapter features 50Ω impedance with a DC~7.5GHz operating range and VSWR below 1.20. It adopts silver-plated bronze inner conductor, ternary alloy brass housing and PTFE insulator, boasting over 500 mating cycles and wide -55℃~+165℃ temperature tolerance. RoHS-compliant with 1000V dielectric strength, it delivers stable low-loss signal transmission, widely used in base stations, test equipment and microwave systems.

12in

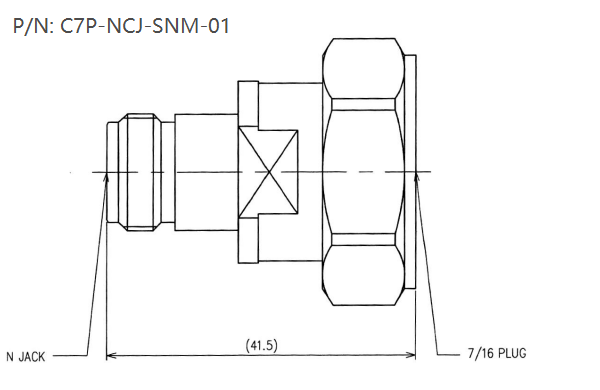

P/N:C7P-NCJ-SNM-01 Quantity Unit Price 01~09 US$15.15 10~49 US$14.54 50~99 US$13.94 100~199 US$13.03 200+ Call Us

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

7/16 to n adapter, 7/16 male adapter, type n adapter

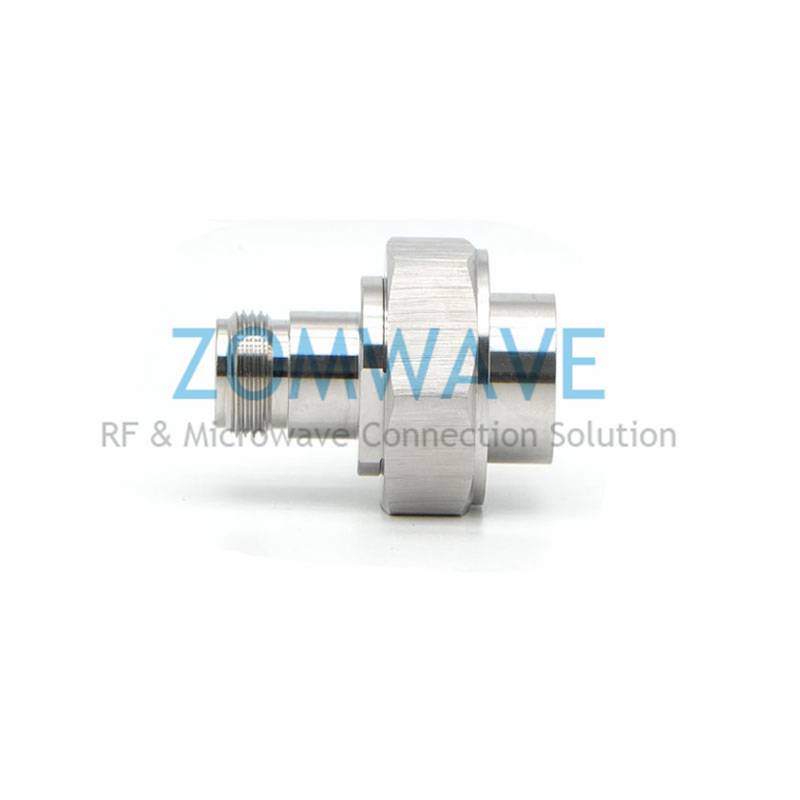

rf adapter, 7/16 male adapter, type n adapter

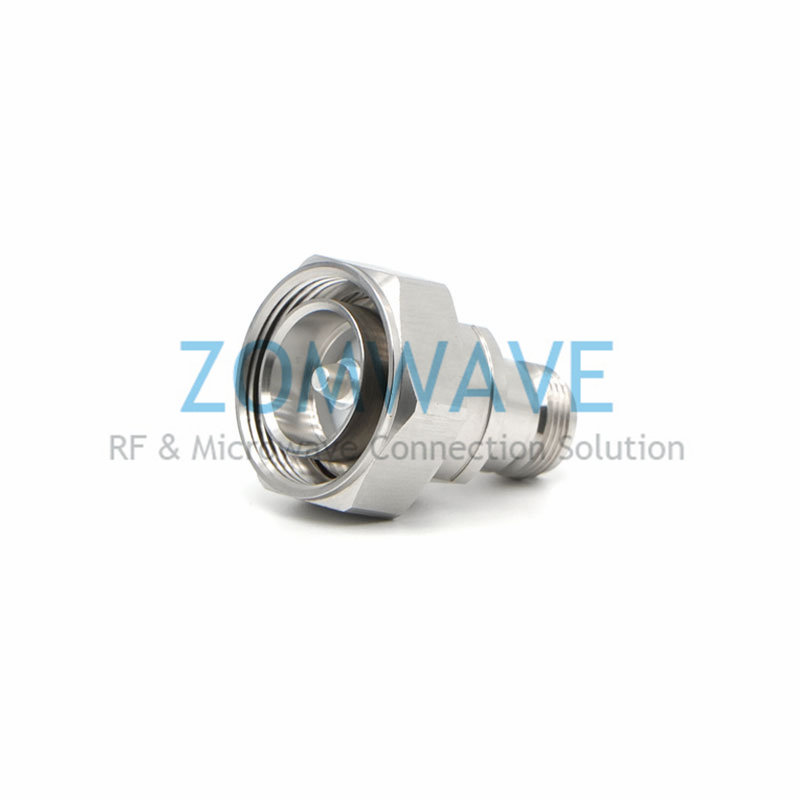

7/16 to n adapter, rf adapters

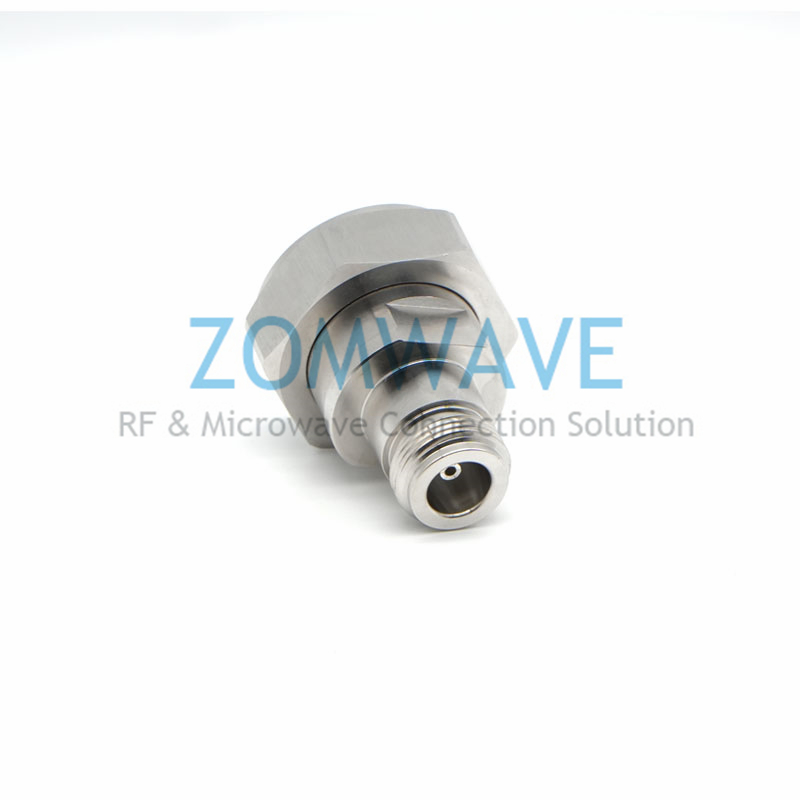

rf coaxial adapter, rf adapters, 7/16 adapter

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

Configuration
Adapter Series 1	7/16
Adapter Gender 1	Male
Adapter Angle 1	Straight
Adapter Mount Method1	None
Body Materials and Plating 1	BRASS PLATED, TERNARY ALLOY.
Adapter Series 2	Type N
Adapter Gender 2	Female
Adapter Angle 2	Straight
Adapter Mount Method 2	None
Body Materials and Plating 2	BRASS PLATED, TERNARY ALLOY.
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	7.5GHz
VSWR	≤1.25:1 (DC 0~7.5GHz)
Insertion Loss	≤0.05xSqt(f_GHz)
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	5~7 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-55°C ~ +165°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
