SMA Connector

SMA Female PCB End Launch, .066 inch PCB Thickness (Max), .020 inch Pin width,18

5 Days Ship Out. Negotiated Prcie. ZOMWAVE SMA Female PCB End Launch Connector, .066 inch PCB Thickness (Max), .020 inch Pin Width has an interface type of End Launch and a 50 Ohm impedance. SMA female connector uses shield/contact solder as an attachment method. Our female SMA pcb connector provides a minimum frequency of DC and a maximum frequency of 18GHz. ZOMWAVE SMA female pcb connector has a PTFE dielectric type and a VSWR of 1.35. The ZOMWAVE SMA Female PCB End Launch Connector, .066 inch PCB Thickness (Max), .020 inch Pin Width has a brass body with gold plating. Our SMA connector uses beryllium copper contact. This SMA female pcb RF connector is RoHS and REACH compliant. Our SMA female connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. compatible only with the 2.4mm interface. Zomwave supplies SMA Female Straight Thru Hole PCB Connector.

12in

P/N:MAJS-NMSS-PEDM-91 Quantity Unit Price 01~09 US$4.00 10~49 US$3.85 50~99 US$3.70 100~499 US$3.45 500+ Call Us
ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures
Specifications



sma female connector, sma pcb connector, sma coaxial connector

sma female connector, sma pcb connector,coaxial cable supplier

sma female connector, sma pcb connector, coax cable manufacturer

sma pcb connector, coax cable manufacturer, connector sma

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

sma connector, sma female connector, coaxial connector

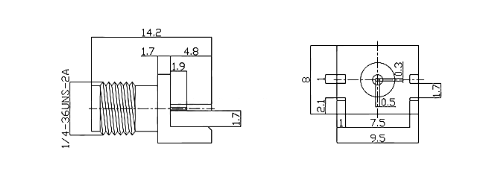

*Dimensions are in mm

Configuration
Connector Series  SMA
Connector Gender  Female
Connector Angle Straight
Connector Mount Method None
Attachment Method Solder
Interface Type End Launch
Material
Centre Contact Berylium-copper, gold plated
Body Brass, gold plated
Insulators PTFE
Electrical Specifications
Impedance 50 ohm
Frequency Range(From DC) 18GHZ
VSWR ≤1.35:1 (DC 0~18GHz)
Insertion Loss 0.05 xSqt.(f_Ghz)
Voltage Rating 150 V(rms)
Dielectric Withstanding Voltage 500 V
Insulation Resistance ≥500 Mohm
Mechanical Characteristics
Mating Cycles ≥ 500 cycles
Mating Torque 5-7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating -40°C ~ +125°C
Corrosion (Salt Spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D, 20 Gs
Shock MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
