SMP Connector

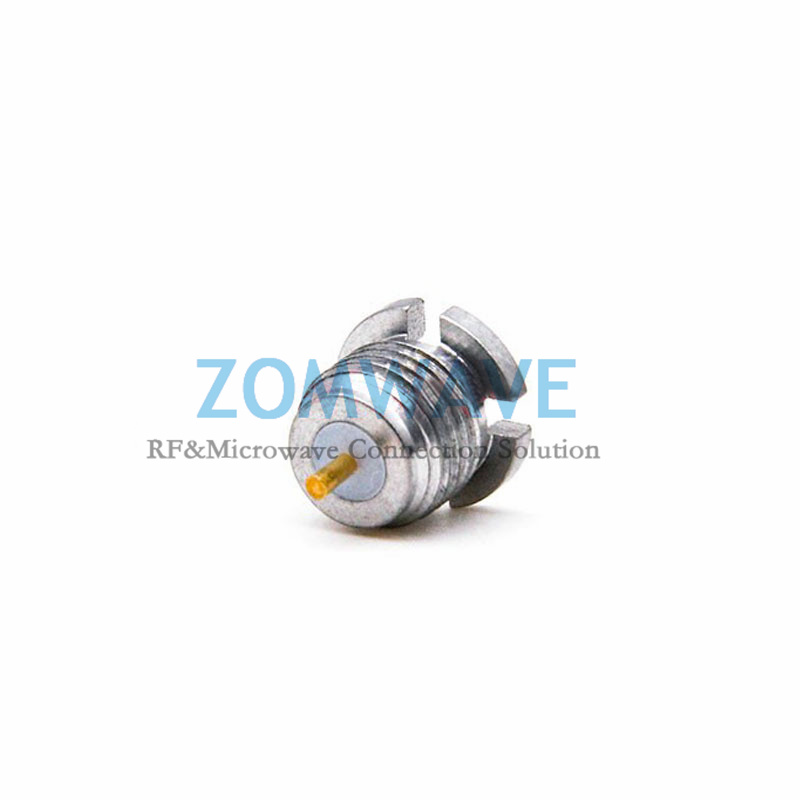

SMP(GPO) Male Stainless Steel Thread-In Terminal Connector (Full Detent), 18G

5 Days Ship Out. Negotiated Prcie. ZOMWAVE SMP(GPO) Male Stainless Steel Thread-In Terminal Connector (Full Detent), Extended 2mm Pin connector has an interface type of Thread-in terminal and a 50 Ohm impedance. smp male connector uses shield/contact solder as an attachment method. Our female smp pcb connector provides a minimum frequency of DC and a maximum frequency of 18GHz. ZOMWAVE smp male pcb connector has a PTFE dielectric type and a VSWR of 1.25. The ZOMWAVE SMP(GPO) Male Stainless Steel Thread-In Terminal Connector (Full Detent), Extended 2mm Pin connector has a brass body with gold plating. Our smp connector uses beryllium copper contact. This smp male pcb RF connector is RoHS and REACH compliant. Our smp male connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. compatible only with the smp interface. Zomwave supplies SMP PCB End Launch Connector.

12in

P/N:MPPS-FLTS-PTMS-97 Quantity Unit Price 01~09 US$17.46 10~49 US$14.67 50~99 US$13.58 100~199 US$12.64 200+ Call Us
ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures
Specifications



smp connector, smp male connector, smp caoxial connectors

smp connector, smp male connector, smp cable assembly

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

smp connector, smp male connector, smp male

Configuration
Connector Series  SMP
Connector Gender  Male
Connector Angle Straight
Connector Mount Method None
Attachment Method Solder
Interface Type Thread-in Terminal
Material
Centre Contact Brass, gold plated
Body Stainless Steel Passivated
Insulators PTFE
Electrical Specifications
Impedance 50 ohm
Frequency Range(From DC) 18GHZ
VSWR ≤1.25:1 (DC 0~18GHz)
Insertion Loss 0.05 xSqt.(f_Ghz)
Voltage Rating 150 V(rms)
Dielectric Withstanding Voltage 500 V
Insulation Resistance ≥500 Mohm
Mechanical Characteristics
Mating Cycles ≥ 500 cycles
Mating Torque 5-7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating -45°C ~ +125°C
Corrosion (Salt Spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D, 20 Gs
Shock MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.
