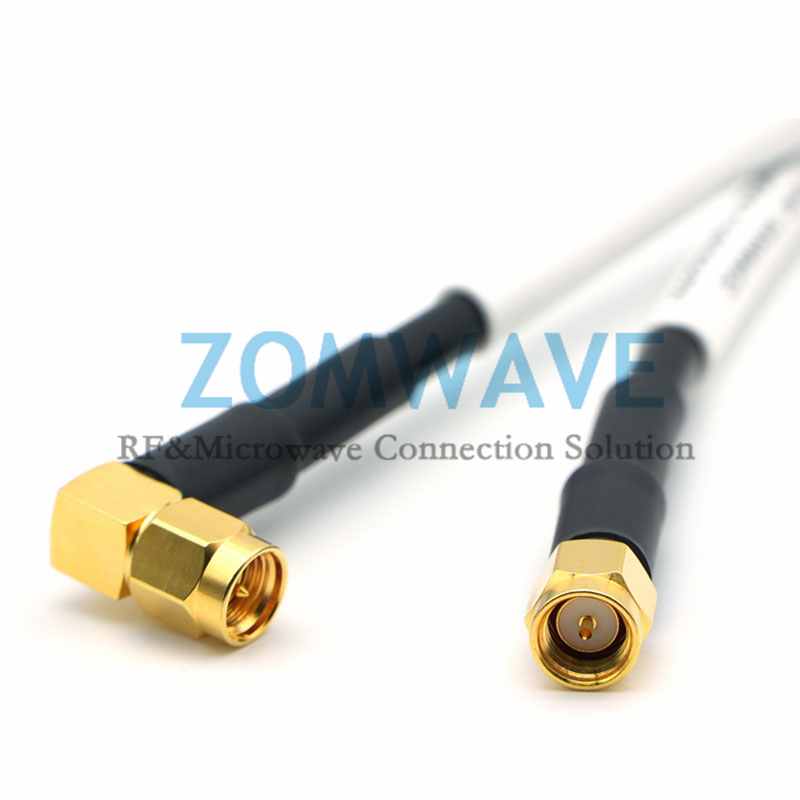

SMA Male to SMA Male R/A, ZMR195 (LMR195 Alternative) Cable Assembly, 4.2GHZ

SMA Male to SMA Male R/A, ZMR195 (LMR195 Alternative) Cable Assembly, 4.2GHZ

Zomwave’s ZMR series cables serve as high-performance equivalents to Amphenol LMR series cables, engineered for superior RF signal transmission across a broad frequency range from DC to 67 GHz. Built with low-loss dielectric and robust shielding, these cables minimize signal attenuation and interference, ensuring exceptional stability for fixed and mobile applications. Ideal for 5G/6G telecom base stations, aerospace & defense radar systems, test & measurement setups, and industrial automation sensors. ZMR series cables meet MIL-STD and RoHS standards, delivering reliable, cost-effective performance without compromising quality. Customizable lengths and connector options (SMA, N-type, TNC, 4.3-10) cater to diverse project needs.

Standard Lengths :

12in 24in 36in 48in

P/N: MAPRMAPS-L195A-12IN-01

P/N: MAPRMAPS-L195A-24IN-01

P/N: MAPRMAPS-L195A-36IN-01

P/N: MAPRMAPS-L195A-48IN-01

ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures

Specifications

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

Configuration
Connector Series 1	SMA
Connector Gender 1	Male
Connector Angle 1	Straight
Connector Mount Method1	None
Body Materials and Plating 1	Brass, Gold Plated
Connector Series 2	SMA
Connector Gender 2	Male
Connector Angle 2	Right Angle
Connector Mount Method 2	None
Body Materials and Plating 2	Brass, Gold Plated
Cable Type	ZMR195 ( LMR195 Alternative)
Electric Specifications
Impedance	50ohm
Frequency Range(From DC)	4.2GHz
VSWR	≤1.2:1 (DC 0~4.2GHz)
Insertion Loss	Depends on cable length
Voltage Rating	335 V(rms)
Dielectric Withstanding Voltage	500 V
Insulation Resistance	≥500 Mohm
Mechanical Characteristics
Mating Cycles	≥ 500 cycles
Mating Torque	8 in - lbs
Environmental Characteristics （RoHS Complliant)
Temperature Rating	-40°C ~ +85°C
Corrosion (Salt Spray)	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D, 20 Gs
Shock	MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock	MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance	MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude)	MIL-STD-202, Method 105, Condition C, 70k Ft.
Cable Specification
Center Conductor	Bare Copper Wire
Dielectric	Foam PE
Jacket	FEP
Jacket Diameter(mm)	4.95±0.05
Min. Bending Radius(Static)	12.7mm
Min. Bending Radius(Dynamic)	50.8mm
Shielding Effect(dB)	>90
Weight(kg/km)	50 (Reference)
Coaxial Cable Attenuation ＠ 20℃ and Sea Level, Power
Frequency (GHz)	Attenuation(dB/m)
0.45	0.26
0.9	0.37
1.5	0.48
1.8	0.53
2	0.56
2.5	0.63
5.8	0.93
6	1
