Type N Connector

N Female Waterproof Terminal , 4 hole Flange,7.2mm Insulator and 2.3mm Pin,6Ghz

5 Days Ship Out. Negotiated Prcie. ZOMWAVE N Type Female Waterproof Terminal Connector, 4 hole Flange, Extended 7.2mm Insulator and 2.3mm Pin connector has an interface type of stub terminal and a 50 Ohm impedance.Type N female connector uses shield/contact solder as an attachment method. Our female Type N pcb connector provides a minimum frequency of DC and a maximum frequency of 6GHz. ZOMWAVE Type N female pcb connector has a PEI dielectric type and a VSWR of 1.25. The ZOMWAVE N Type Female Waterproof Terminal Connector, 4 hole Flange, Extended 7.2mm Insulator and 2.3mm Pin connector has stainless steel body. Our Type N connector uses beryllium copper contact. ThisType N connector is RoHS and REACH compliant. Our Type N connector is part of over 40,000 RF, microwave and millimeter wave components in stock for worldwide shipment. ZOMWAVE supplies Type N connector .

12in

P/N:NCJS-FLTS-PTMS-98 Quantity Unit Price 01~09 US$4.33 10~49 US$5.16 50~99 US$4.01 100~499 US$3.74 500+ Call Us
ORDER NOW

*More quantity request or best price, please sent the RFQ to zomwave sales

Pictures
Specifications



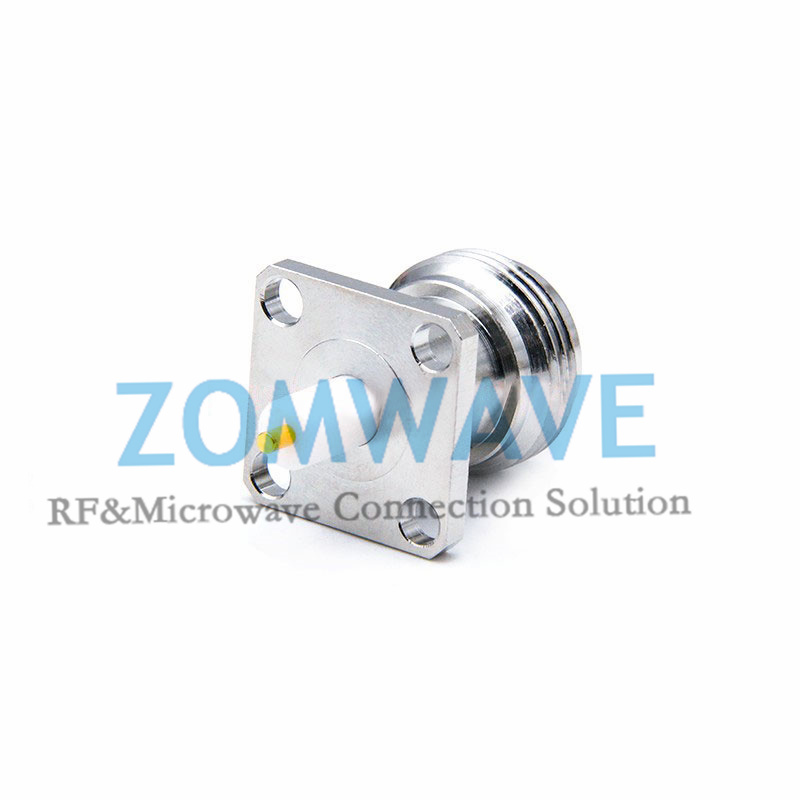

n female connector, type n female connectors, type n connectors

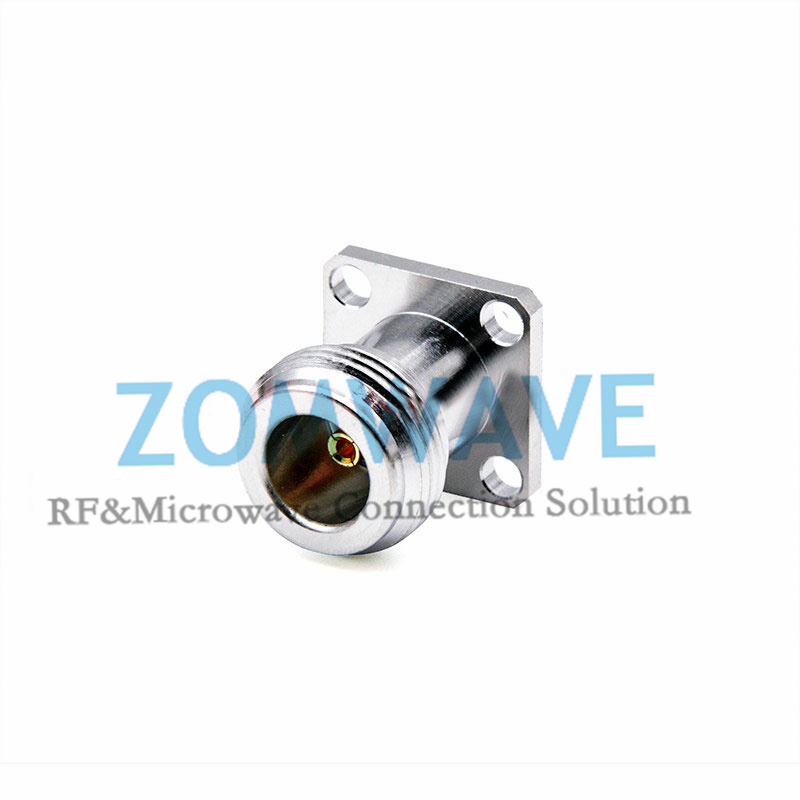

n female connector, type n female connectors, custom rf connectors

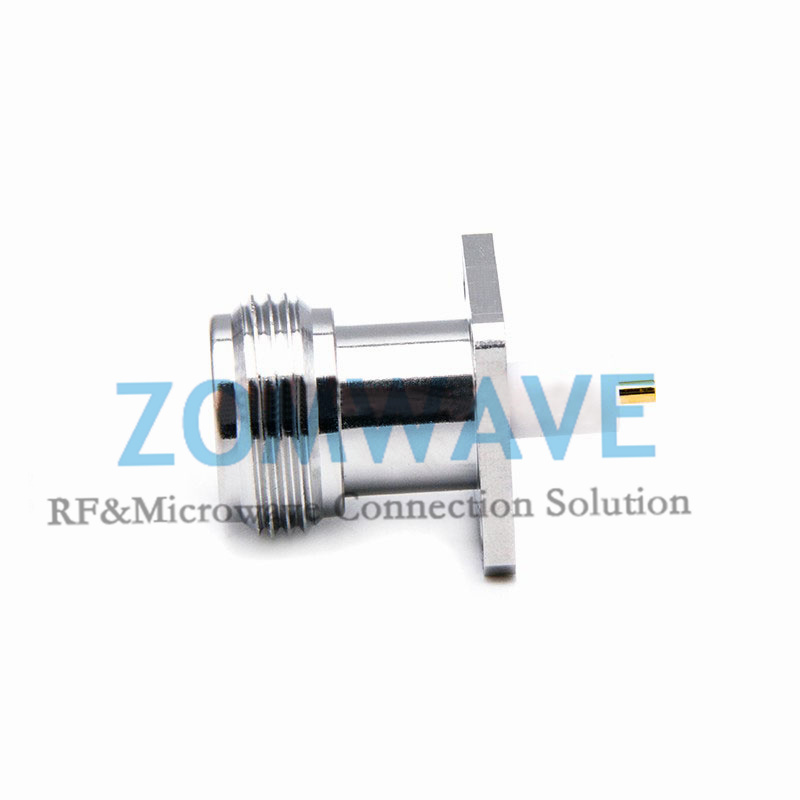

n female connector, type n female connectors, coaxial connectors

n female connector, type n female connectors, n type connectors

Q1. What is your delivery time?

A1). We promise within 5 days ship out for the standard products less than 200 pcs.

A2). Customized products would be 2~3 weeks lead time.

Q2. Which shipping way is available and how to track?

A1). By international Express like FedEx, DHL, TNT, UPS, normally door to door in 5~7 days.

A2). Tracking No. will be sent after goods ship out.

Q3. Do your price include freight cost and custom duty?

A1). Price do NOT include the freight cost and import duty.

A2). We can quote you the detail freight cost by our forwarder agent.

Q4. Which payment way is workable?

A1). We accept Wire Transfer (T/T) and PayPal payments (order value less than USD$500).

A2). Payment in advance for new clients.

Q5. What is the MOQ of your products?

A1). No MOQ request for standard products (include customized length cable) on our website.

A2). Other customized products we request 500 pcs MOQ (Minimum Order Quantity).

Q6. Could you supply the sample for me to test first?

A1). We are honored to offer you samples. New clients are expected to pay the sample fee.

A2). Sample fee can be refunded in your mass production order (total quantity up to 1000 pcs).

n connectors, type n connectors, coaxial connectors

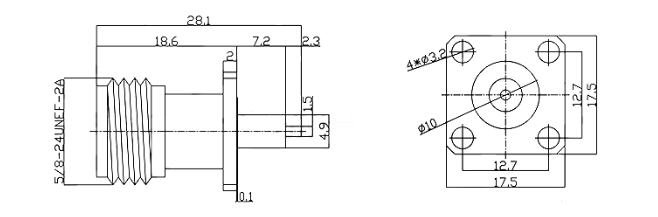

*Dimensions are in mm

Configuration
Connector Series  Type N
Connector Gender  Female
Connector Angle Straight
Connector Mount Method None
Attachment Method 4-Hole Flange
Interface Type Stub Terminal
Material
Centre Contact Phosphorus-Copper Gold Plated
Body Brass, Nickel Plated
Insulators PTFE
Electrical Specifications
Impedance 50 ohm
Frequency Range(From DC) 6GHZ
VSWR ≤1.25:1 (DC 0~6GHz)
Insertion Loss 0.05 xSqt.(f_Ghz)
Voltage Rating 150 V(rms)
Dielectric Withstanding Voltage 500 V
Insulation Resistance ≥500 Mohm
Mechanical Characteristics
Mating Cycles ≥ 500 cycles
Mating Torque 5-7 in - lbs
Environmental Characteristics (RoHS Complliant)
Temperature Rating -45°C ~ +125°C
Corrosion (Salt Spray) MIL-STD-202, Method 101, Condition B
Vibration MIL-STD-202, Method 204, Condition D, 20 Gs
Shock MIL-STD-202, Method 213, Condition I, 100 Gs
Thermal Shock MIL-STD-202, Method 107. Cond. B, -40°C to +85°C
Moisture Resistance MIL-STD-202, Method 106, Less Step 7B
Barometric Pressure (Altitude) MIL-STD-202, Method 105, Condition C, 70k Ft.



Write us

In case you have some flexible purchasing plans, please leave your questions in the form and our consultant will contact you for further negotiation.

tel email whatsapp skype
Copyright © 2021 ZOMWAVE TECHNOLOGY CO., LTD
Technical Support: Magic Lamp
